S-Unit Calculator for Hytera-Devices

(Absolute Beta-Version! The S-units are not yet as Accurate!)
RSSI-Wert

(Allowed values: -141 bis -33 / 141 bis 33):

*************************************************************************************

The reason for this:

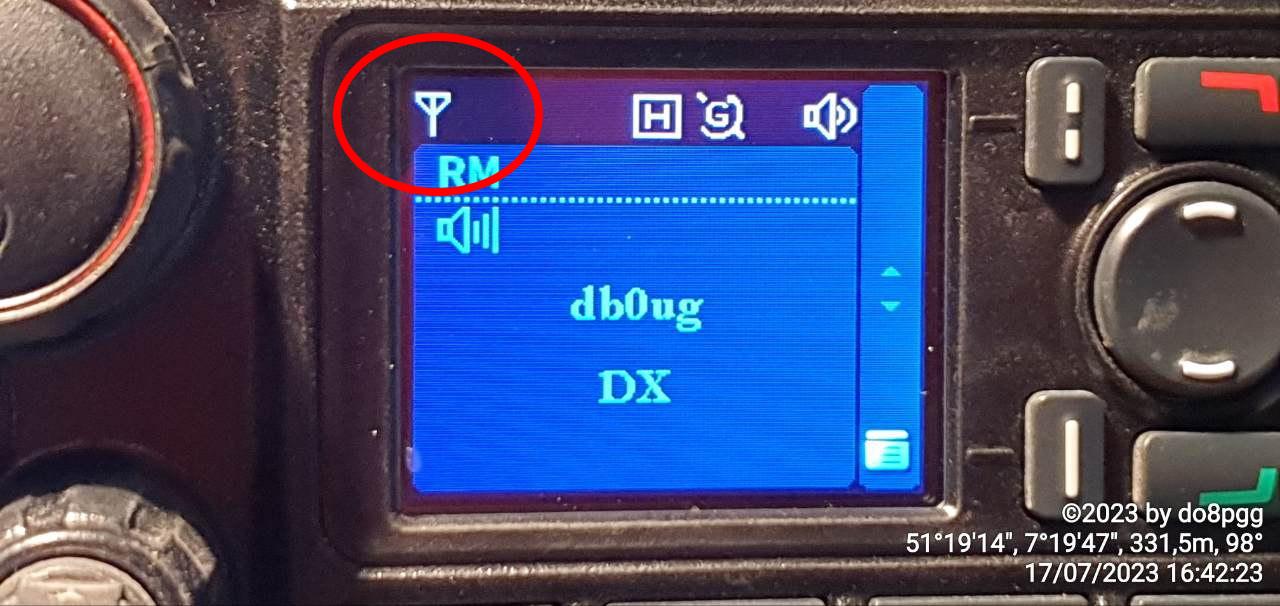

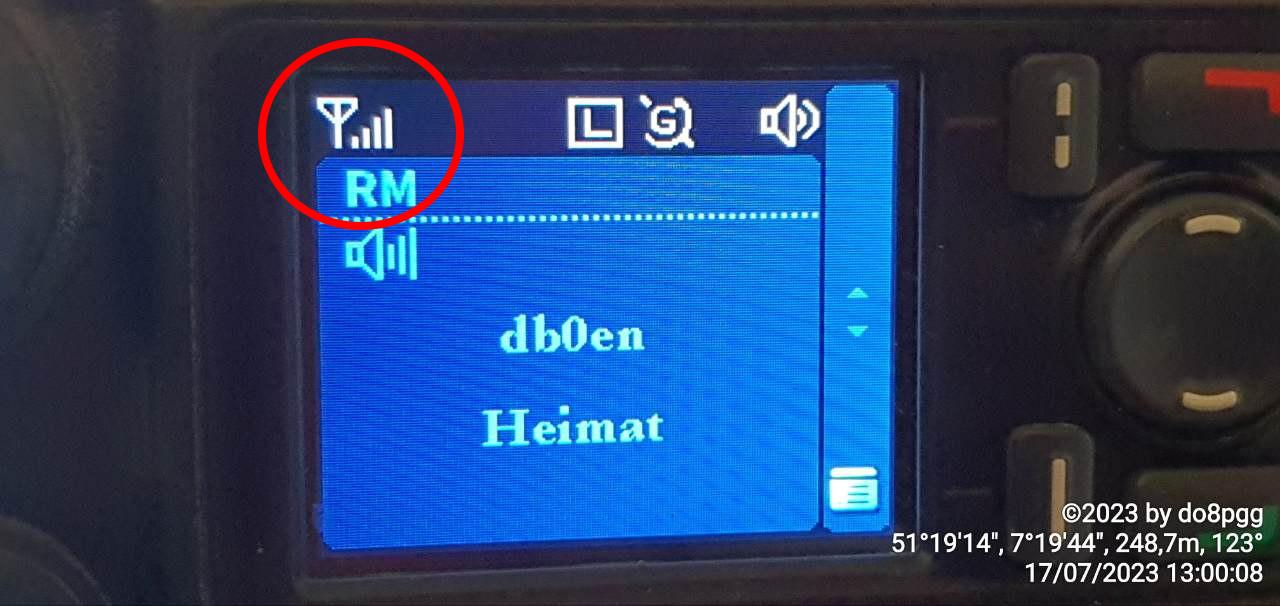

The Hyteras (MD and PD 785) unfortunately do not have a (usable)
display for the signal strength:


However, you can have the RSSI value displayed;
Switch to the channel/frequency where you want to see the RSSI value,
then press the key combination
(Do not be distracted by the display; just keep going :-))


Green then - - then -- then Green then - - then --

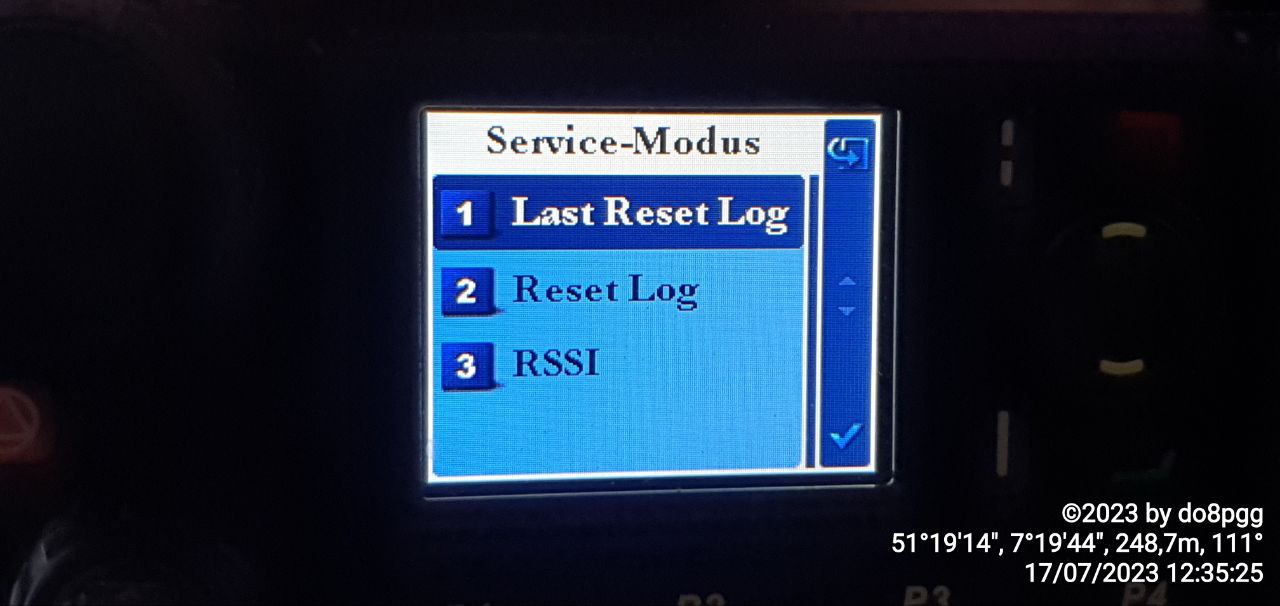

Then select RSSI at the bottom.

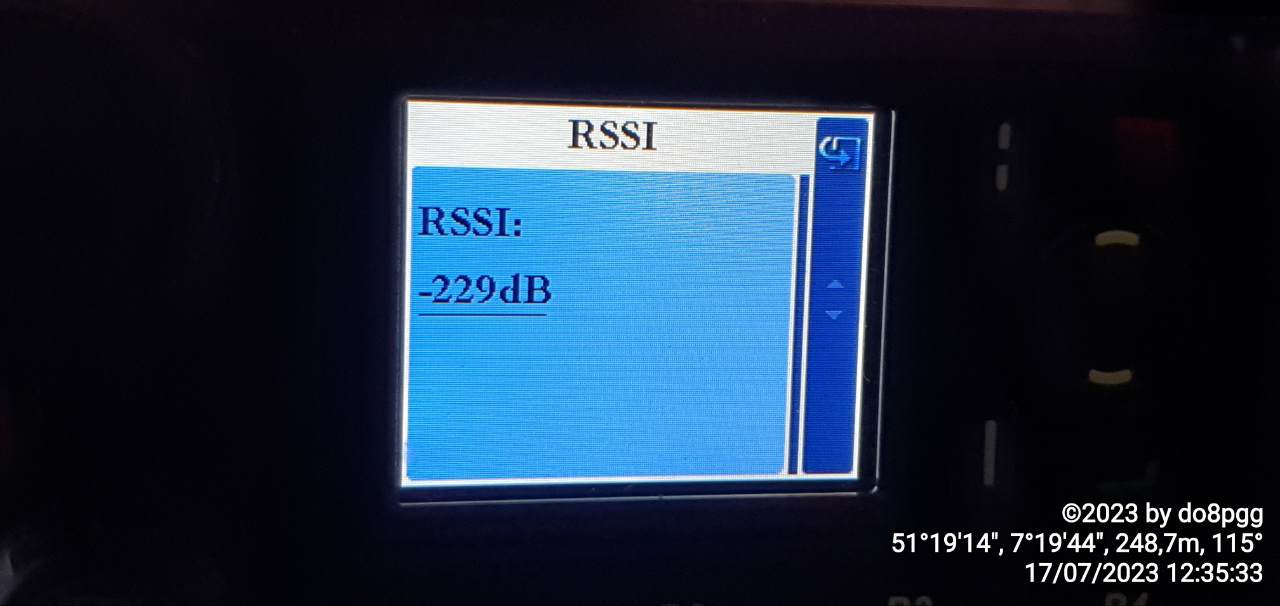

If there is nothing happening on the frequency, it will show -229dB.

As soon as the relay or someone transmits, the RSSI increases.

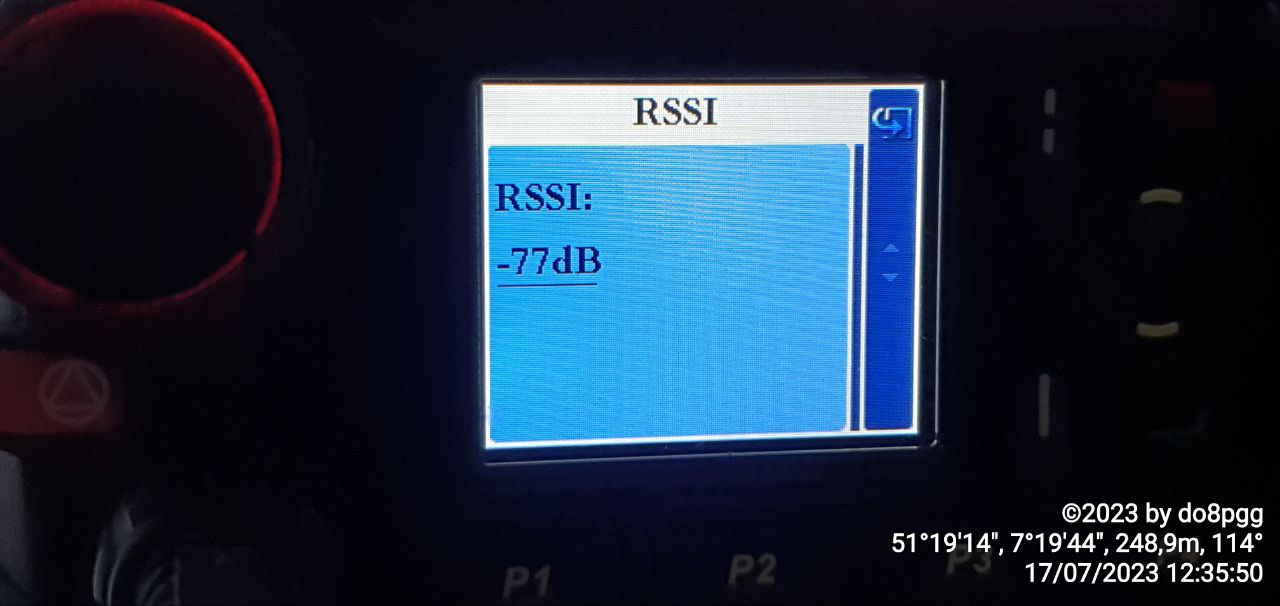

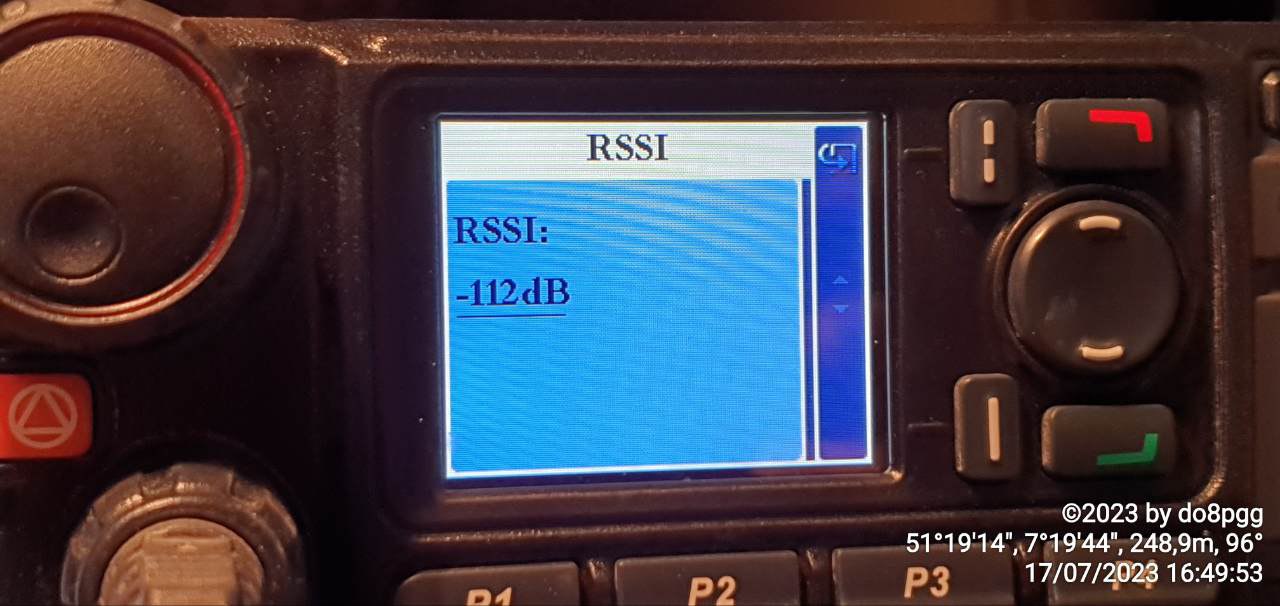

For example, -77dB for db0en (5km) or -112dB on db0ug at 126km
